Why Does My Thermal Scope Freeze and Click? Understanding Non-Uniformity Correction (NUC)

If you are new to thermal optics, you might experience a brief moment of panic during your first night out in the field. You will be scanning a tree line or tracking a target when, suddenly, the display screen freezes. A split second later, you hear a distinct physical "click" inside the scope's housing, the image snaps back to life, and the display suddenly looks significantly cleaner and sharper than it did just a moment before.

There is no need to worry - your scope is not broken, and your battery is not dying. What you just experienced is a Non-Uniformity Correction (NUC), also commonly referred to as a Flat Field Correction (FFC).

Understanding what a NUC is, why your scope does it, and how to manage it will help you get the absolute best performance out of your thermal optic.

Why Does Your Scope Need to Calibrate?

Unlike traditional daytime glass scopes that use physical lenses to bend light, a thermal scope is essentially a highly specialized digital computer. It features an uncooled infrared sensor (called a microbolometer) that measures incredibly tiny variations in heat.

However, as your scope runs, its internal computer processor, battery, and circuit boards naturally generate their own heat. This internal warmth slowly spreads through the scope's housing and begins to bleed onto the sensor. This is known as sensor drift.

Because the microbolometer is designed to detect heat, it cannot naturally tell the difference between the heat of a coyote in the distance and the heat being generated by its own battery. If left unchecked, this internal heat creates electronic "static". Individual pixels on the sensor will begin to drift, causing your display to look grainy, lose contrast, or even develop faint, distracting "ghost" images.

How the "Click" and the "Freeze" Fix Your Image

To clear up this visual noise, the thermal scope has to recalibrate itself so that every pixel reads temperatures accurately and evenly. This is where the physical click and freeze come into play.

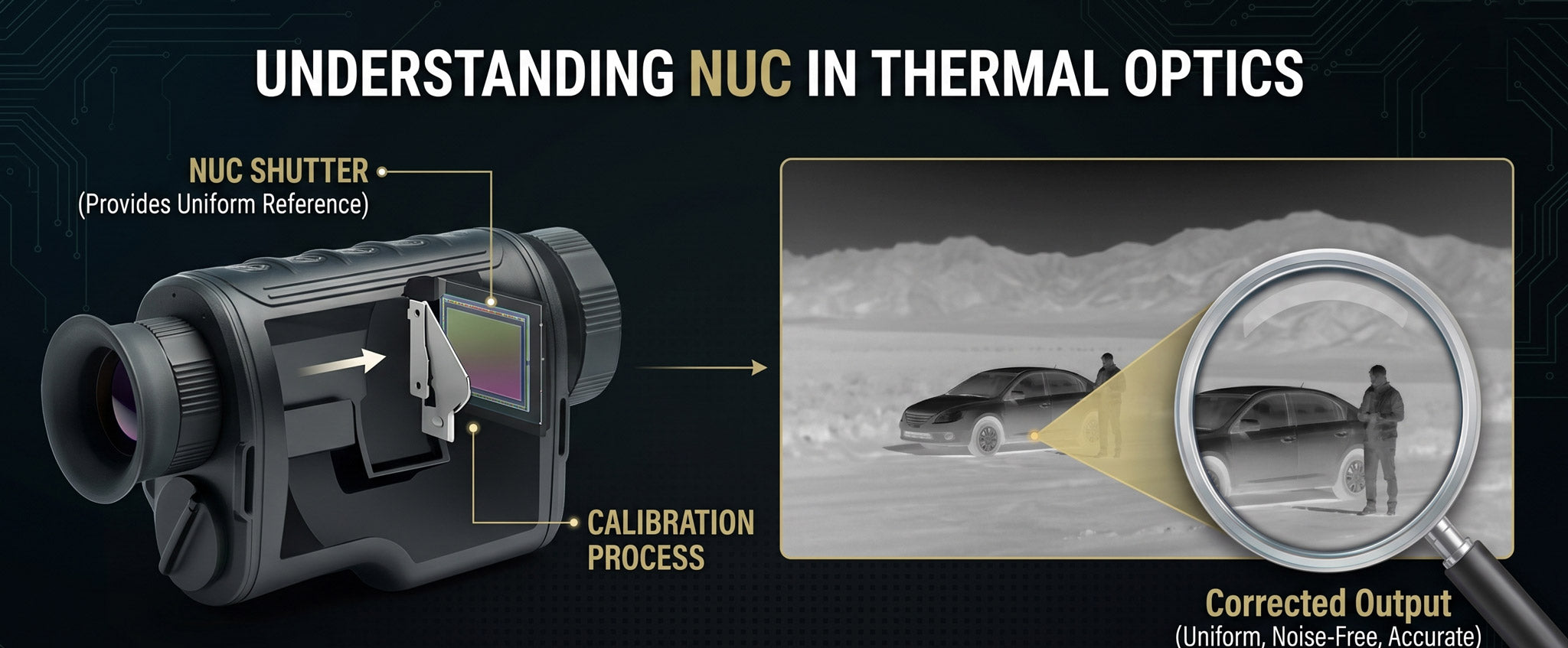

When a NUC is triggered, a tiny mechanical shutter drops down inside the scope directly between the front lens and the sensor.

• The Click: The clicking sound you hear is the physical shutter snapping down to cover the sensor and then snapping back open.

• The Freeze: While the shutter is down, your live video stream freezes momentarily. This is because the sensor is temporarily blocked from looking at the outside world.

Because the closed internal shutter has a completely flat, uniform temperature, it acts as a perfect baseline reference. While the screen is frozen, the scope's computer processor measures the shutter's flat temperature and instantly resets the calibration (the gain and offset) for every individual pixel on the sensor array.

The moment the pixels are reset to this clean, uniform baseline, the shutter snaps open. The visual static is wiped clean, and your contrast and image sharpness are instantly restored.

Automatic vs. Manual NUC: Pro Tips for Beginners

Most thermal scopes are set to run an Automatic NUC by default. While this is convenient, it can cause issues if you don't know how to manage it in the field.

1. Expect Frequent Clicks at Startup

When you first power on your thermal scope, its internal components are cold, but they begin warming up rapidly. Because the internal temperature is shifting fast, the sensor's pixels drift quickly, and the scope will automatically NUC very frequently during the first few minutes.

Once the device reaches its stable operating temperature - usually after 10 to 20 minutes in a stable environment - the NUC cycles will happen much less often. Always turn your scope on and let it warm up before you begin zeroing or hunting.

2. Switch to Manual NUC Before the Shot

The primary downside to an Automatic NUC is timing. Because the scope's computer decides when to calibrate, it can freeze your screen at the worst possible second - such as right when you are pulling the trigger on a fast-moving target.

To prevent this, most scopes allow you to enter the system settings and switch the NUC mode from "Auto" to "Manual" (sometimes called "Semi-Auto"). In Manual mode, the scope will never freeze on its own. Instead, you control the calibration by quickly tapping the power button or calibration button. Experienced hunters will scan the field in manual mode, and when they spot a clear lane or expect a target to arrive, they will tap the button to manually NUC the scope. This guarantees they have a perfectly clean, static-free image right before lining up a shot.

3. The Lens Cap Override (External NUC)

If your scope does not feature an internal shutter, or if you want to perform a manual reset on a device, you can perform an "external NUC".

To do this, you simply cover your front objective lens completely with its plastic lens cap and initiate the manual NUC sequence through your scope's buttons. The sensor will calibrate itself using the flat, uniform temperature of your lens cap instead of an internal shutter.
