THE LINE /THERMAL RIFLE SIGHT

Bellator

BE335L · 384X288 / 1200M LRF

A compact thermal rifle sight built around a <20 mK, 60 Hz sensor. Its shorter, low-profile frame houses a 2560×2560 round AMOLED display for an expansive view through the eyepiece. 836 g, mounts included.

$2,200.00

$100 fully refundable deposit today · Ships January 2027 or earlier · Cancel anytime

FULL SPECS
0×512
Max Resolution, px
2560x0 px
Round AMOLED
≥0 h
Run time
0 g
With mounts
Bellator Thermal Rifle Sight
BE335L · THERMAL RIFLE SIGHT
SCROLL ▼

01 - CONFIGURE

Dedicated Thermal.
Compact Form.


The Bellator pairs a <20 mK, 60 Hz sensor with germanium optics in a compact, low-profile rifle sight. Choose from two sensor and lens combinations, with an optional built-in laser rangefinder.

SENSOR / OBJECTIVE
RANGEFINDER

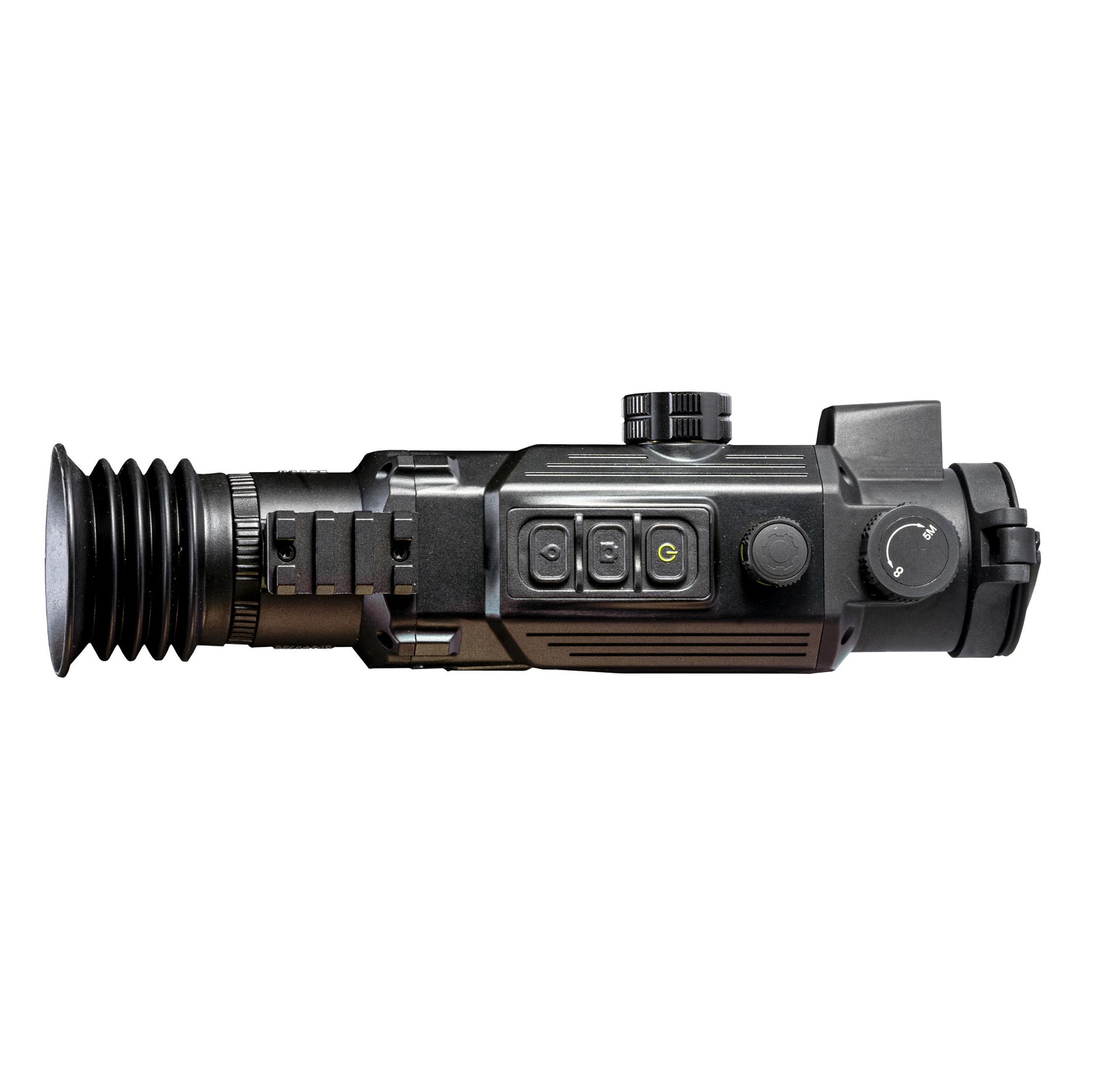

L models include a built-in laser rangefinder for single readings or continuous ranging at 1 or 2 Hz. The 650L also features a 50 mm F0.9 germanium lens.

BE650L
FLAGSHIP · LRF

ALL MODELS: 60 HZ · 2560×2560 AMOLED · 1–8× ZOOM · IP67 · 1000 G/MS

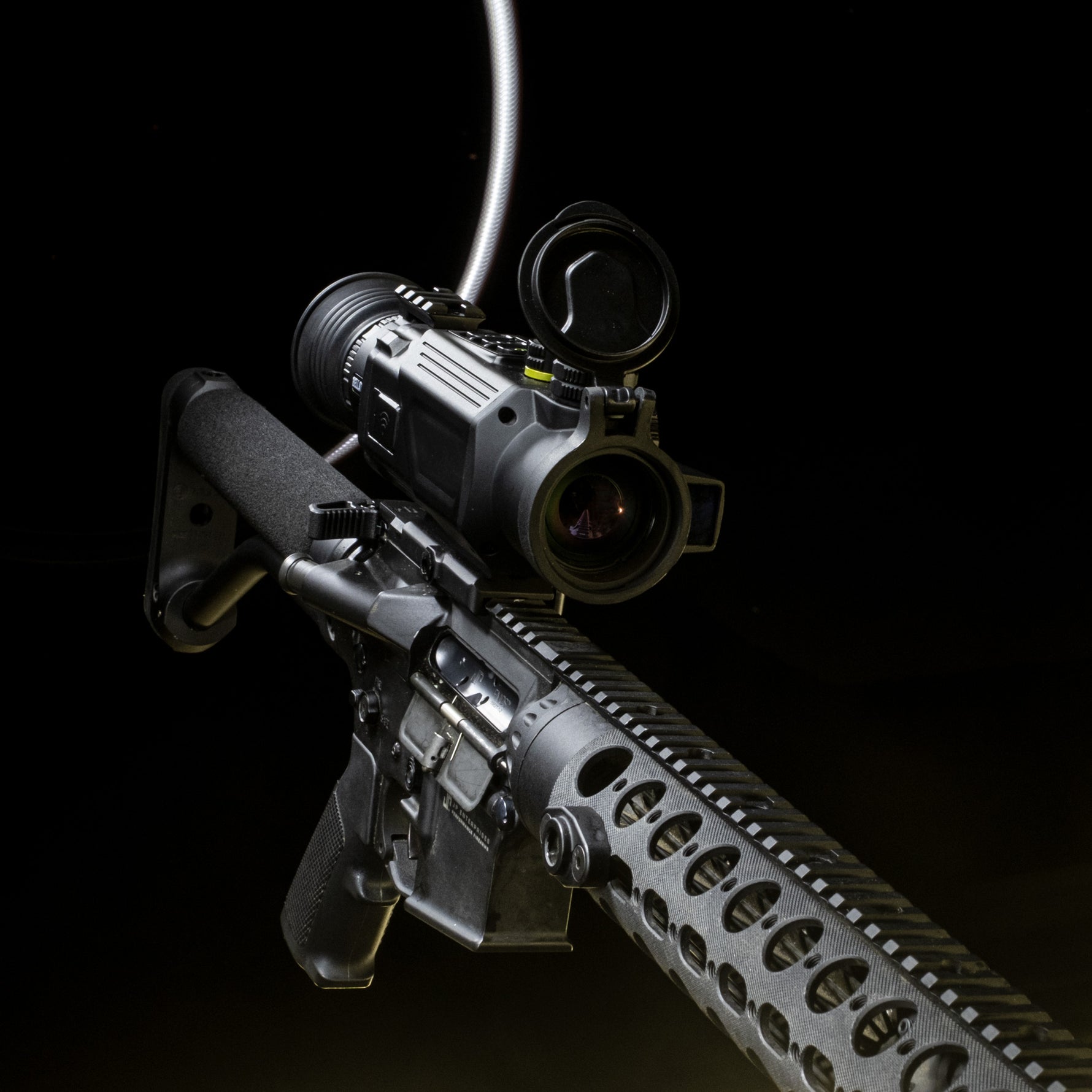

TDX Bellator atop an AR platform

FORM FACTOR

One Interface to the Rail

The Bellator uses the mini ACOG footprint. Run our standard mount or pick your own aftermarket QD mount. Your setup, your call.

02 - SPECIFICATIONS

Technical Details.

The Bellator uses a Mini ACOG mounting footprint. Run the included mount or choose a compatible aftermarket quick-detach mount to suit your setup.

/ 01Sensor & Core
Detector type
Uncooled VOx
Resolution
640 × 512 px (650) · 384 × 288 px (335)
NETD
≤20 mK (@25 °C)
Frame rate
60 Hz
/ 02Optics
Objective lens
50 mm (650) · 35 mm (335) · F0.9 on 650L, F1.0 all others · Germanium
Base magnification
3.3× (650) · 3.8× (335)
Digital zoom
1–8× · stepped or continuous
Field of view
8.7° × 7° (650) · 7.5° × 5.6° (335)
Focus range
5 m – ∞
Eye relief
50 mm
Exit pupil distance
46 mm
Diopter adjustment
−4 to +3 SD
/ 03Display & Electronics
Display
Round AMOLED · 2560 × 2560
Recording
MP4 / JPEG · audio · recoil-activated video
Storage
32 GB onboard
Battery
Dual 18650 · internal + removable external · 3.7 V · ≥7 h @ 25 °C
External power
5 V / 2 A · USB Type-C (power, storage, firmware)
Connectivity
Wi-Fi · Bluetooth
/ 04Built for the Field
Recoil rating
1000 g/ms
Sealing
IP67 (IEC 60529)
Operating temp
−20 °C to +50 °C
Storage temp
−25 °C to +70 °C
Weight
850 g
Certifications
CE · FCC · 3C · RoHS 2.0
Mount
Picatinny
In the box
Objective lens cover · rubber eye cup · data cable
/ 05Fire Control & Software
Palettes
White Hot · Black Hot · Iron · Fusion
Scene modes
City · Bird Watching · Desert · Forest · Arctic · Outline
Ballistics
Ballistic calculation · quick ballistics 10–1500 (10-yard increments)
Zeroing
One-shot zeroing · profiles A–E · 25/50/100/200/300 + user-entered
Reticles
16 patterns · black / white / red / green / blue · brightness 1–10
Laser ranging (L)
Single / 1 Hz / 2 Hz · 3 ranging reticles · meters / yards · field calibration
HOTSPOT TRACKINGSTADIAMETRIC RANGINGPICTURE-IN-PICTURENUC AUTO / MANUAL / BGZOOM STEPPED / CONTINUOUSCOMPASSBURN-IN PROTECTIONDEAD-PIXEL CORRECTIONIMAGE ENHANCEMENT 1–10AUDIO RECORDINGAUTO SHUTOFF 15/30/45EN / CN / FR / ES
