THE LINE /04 — HANDHELD MONOCULAR

Perceptor

PE335L · 384X288 / 35MM F1.0

A handheld thermal monocular built for observation after dark. Choose a 384×288 or 640×512 sensor, with a built-in 1,200-meter laser rangefinder included on every model. IP67-sealed and tripod-ready, with 32 GB of onboard storage for your recordings.

$1,500.00 MSRP $1,999.00

$100 fully refundable deposit today · Ships January 2027 or earlier · Cancel anytime

FULL SPECS
0×512
Max Resolution, Px
≤0 mK
NETD
0 m
Laser rangefinder
≤0 g
In hand

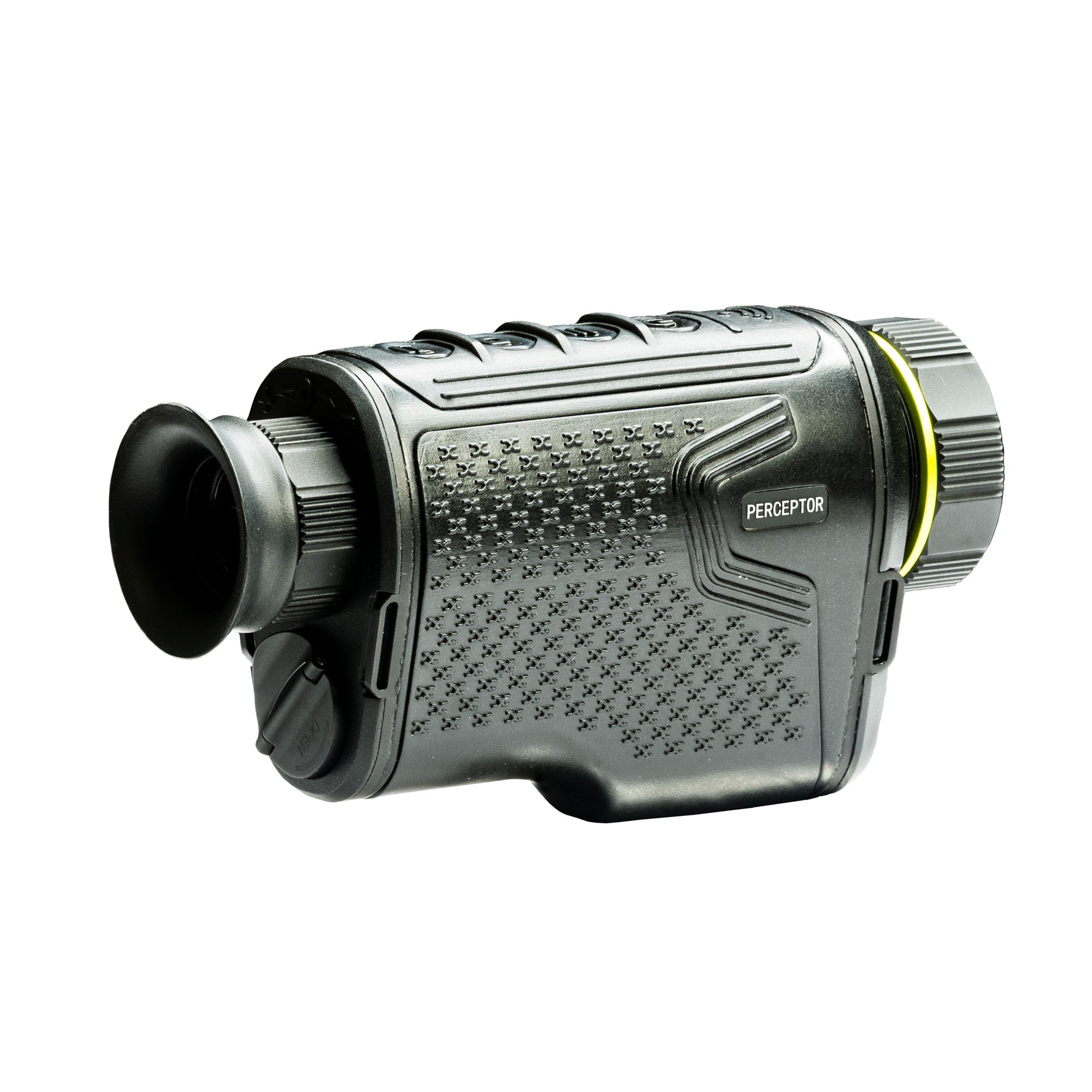

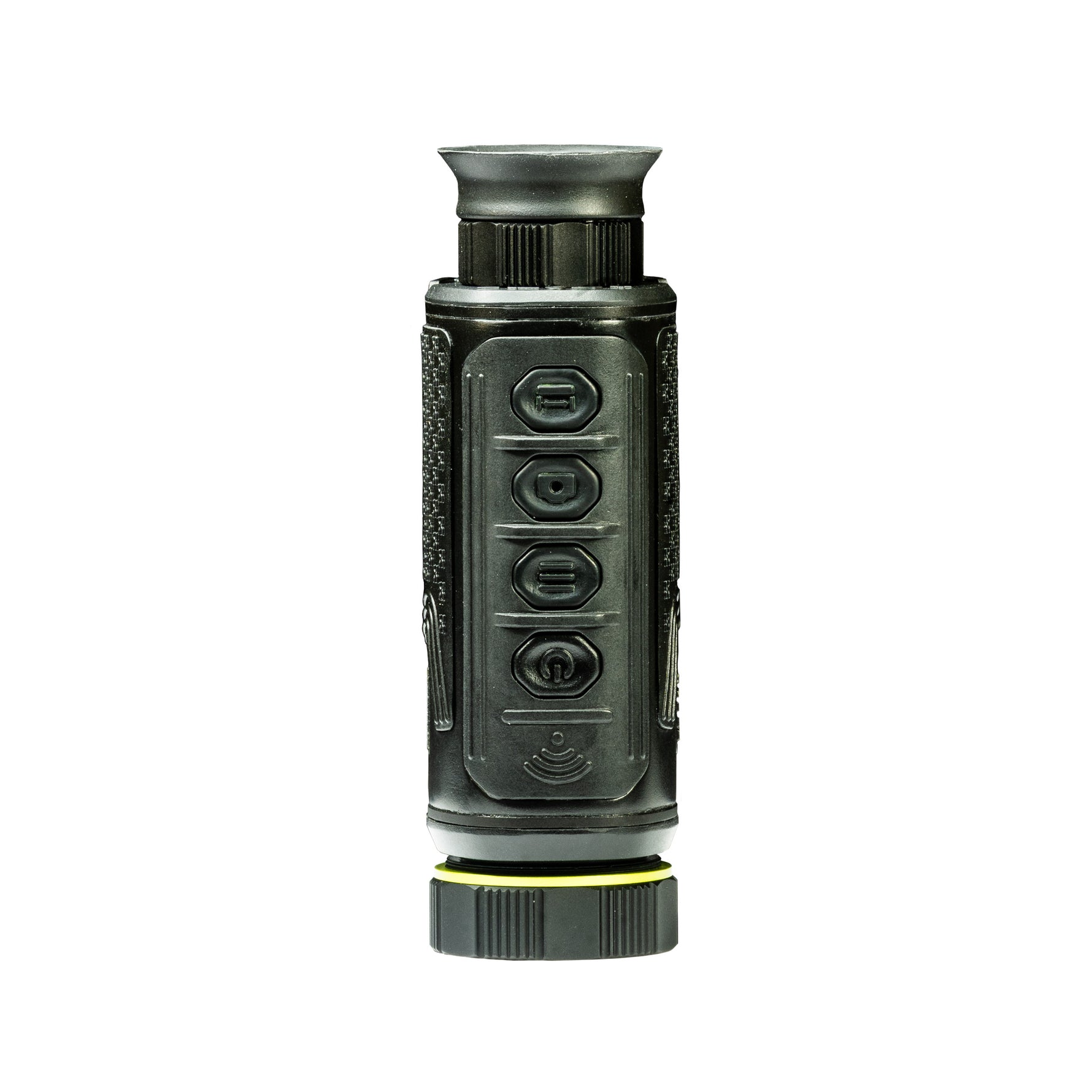

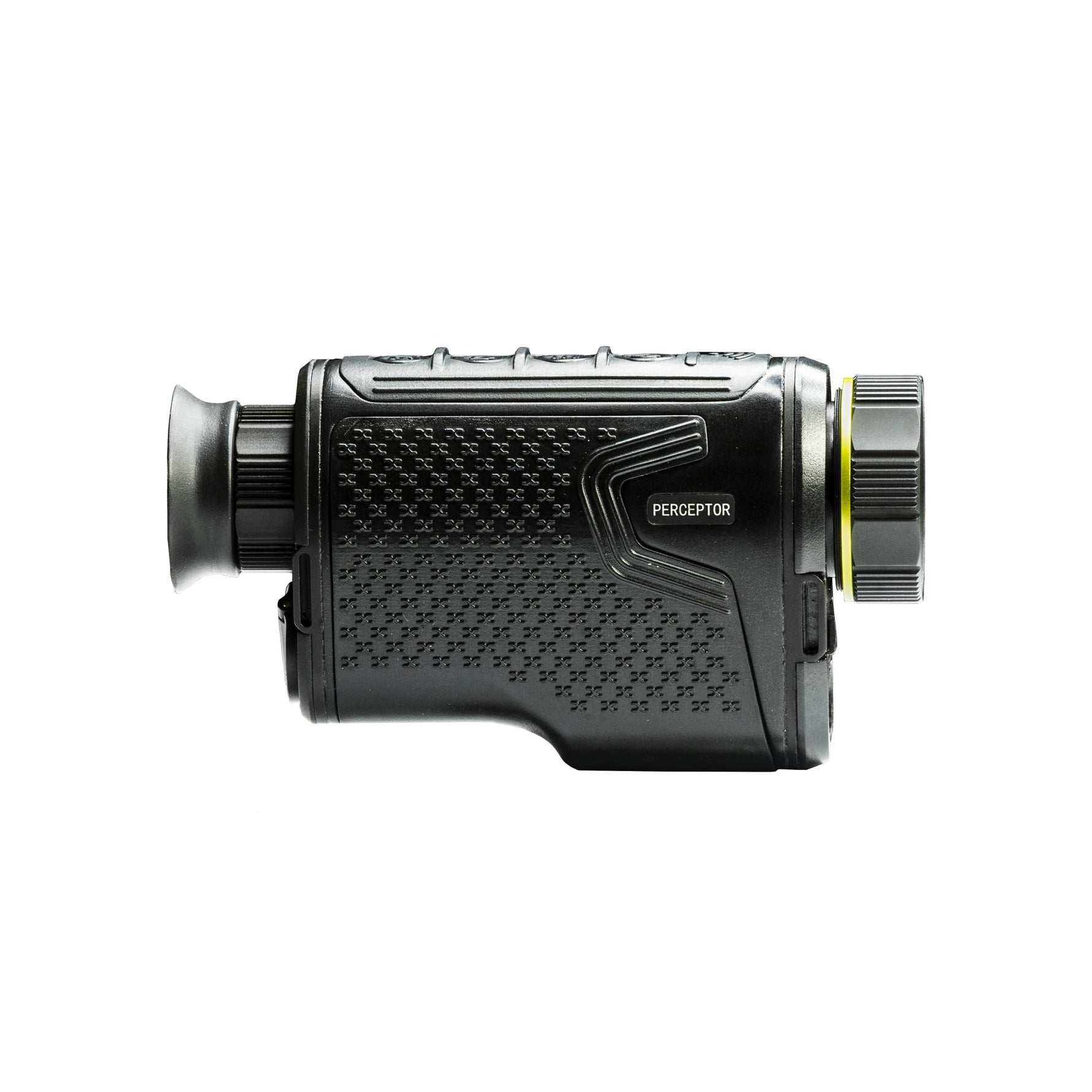

Perceptor Handheld Thermal Monocular with Integrated Laser Rangefinder and Ballistics
PE335L · THERMAL HANDHELD MONOCULAR
SCROLL ▼

01 — CONFIGURE

Choose your
Perceptor.

Three models with different sensor resolutions, objective lenses, and base magnifications. Every Perceptor includes a built-in laser rangefinder rated to 1,200 meters.

MODEL

Choose the PE650L for its 50 mm objective and the longest detection range in the lineup. The PE635L offers a wider 12.5° field of view for scanning more ground. The PE335L pairs a 384×288 sensor with the same body as the PE635L at a more accessible price. Every model includes a built-in 1,200-meter laser rangefinder.

PE650L
MAX DETECTION

ALL MODELS: 1200 M LRF · 60 HZ · 1920×1080 AMOLED · IP67 · 1/4″ TRIPOD THREAD

Perceptor handheld thermal sight in the forest at night

RANGING

Know the distance.

Every Perceptor includes a laser rangefinder rated to 1,200 meters. Take a single reading or use continuous ranging for updates once or twice per second, with distances displayed in yards or meters.

02 — FIND. RANGE. CONFIRM.

/ 01
Smooth, Detailed View

A 60 Hz refresh rate keeps motion smooth as you scan, while the 1920×1080 AMOLED display presents a clear view of the scene.

/ 02
Integrated 1,200m LRF

Integrated rangefinder with single-shot and continuous 1–2 Hz modes, three ranging reticles, meters or yards. Fed straight to the onboard ballistic solver.

/ 03
Record & Share

MP4 with audio to 32 GB onboard, live streaming to the TDX Command app over Wi-Fi, offload via USB-C. A 1/4-inch thread turns any tripod into a fixed observation post.

03 — SPECIFICATIONS

Technical Details.

Every number, straight from engineering. Where models differ, values are marked 335L / 635L / 650L.

/ 01Sensor & Core
Detector type
Uncooled VOx
Resolution
384 × 288 px (335L) · 640 × 512 px (635L, 650L)
NETD
≤20 mK (@25 °C)
Frame rate
60 Hz
/ 02Optics
Objective lens
35 mm F1.0 (335L, 635L) · 50 mm F1.2 (650L) · Germanium
Base magnification
3.6× (335L) · 2.0× (635L) · 2.8× (650L)
Digital zoom
1× · 2× · 4×
Field of view
7.5° × 5.6° (335L) · 12.5° × 10° (635L) · 8.7° × 7° (650L)
Focus range
3 m – ∞
Eye relief
18 mm
Exit pupil diameter
Ø 9.7 mm (335L) · Ø 17.5 mm (635L) · Ø 17.8 mm (650L)
Diopter adjustment
−4 to +4 SD
/ 03Display & Electronics
Display
AMOLED · 1920 × 1080
Recording
MP4 / JPEG · audio recording
Storage
32 GB onboard
Battery
18650 × 1 · 3.7 V · ≥ 5h @ 25 °C
External power
5 V / 2 A · USB Type-C (power, storage, firmware)
Connectivity
Wi-Fi · Bluetooth
/ 04Built for the Field
Laser rangefinder
1,200 m · standard on all models
Recoil rating
1000 g/ms
Sealing
IP67 (IEC 60529)
Operating temp
−30 °C to +45 °C
Storage temp
−25 °C to +70 °C
Weight
370 g (335L) · 372 g (635L) · 390 g (650L)
Mechanical interface
1/4″ tripod thread
Certifications
CE · FCC · 3C · RoHS 2.0
In the box
Objective lens cover · rubber eye cup · data cable
/ 05Software
Palettes
White Hot · Black Hot · Iron · Fusion
Scene modes
City · Bird Watching · Desert · Forest · Arctic · Outline
Ranging
Single / 1 Hz / 2 Hz · 3 ranging reticles · meters / yards · field calibration
Ballistics
Onboard Ballistic Solver
HOTSPOT TRACKINGPICTURE-IN-PICTURENUC AUTO / MANUAL / BGCOMPASSBURN-IN PROTECTIONDEAD-PIXEL CORRECTIONIMAGE ENHANCEMENT 1–10AUDIO RECORDINGSLEEP MODEAUTO SHUTOFF 15/30/45EN / CN / FR / ES
