THE LINE /MULTI-PURPOSE SIGHT

Dominator

DO625 · 640X512

One optic, four roles. The Dominator runs a 640×512, ≤20 mK VOx sensor behind a 25mm germanium f1./0 lens and mounts wherever the job demands: rifle, clip-on, helmet, or handheld. Recoil-rated to 1000 g, sealed to IP67.

$2,800.00 MSRP $3,500.00

$100 fully refundable deposit today · Ships January 2027 or earlier · Cancel anytime

FULL SPECS
0×512
Resolution, Px
≤0 mK
NETD
0 Hz
AMOLED feed
0 g
Without mounts

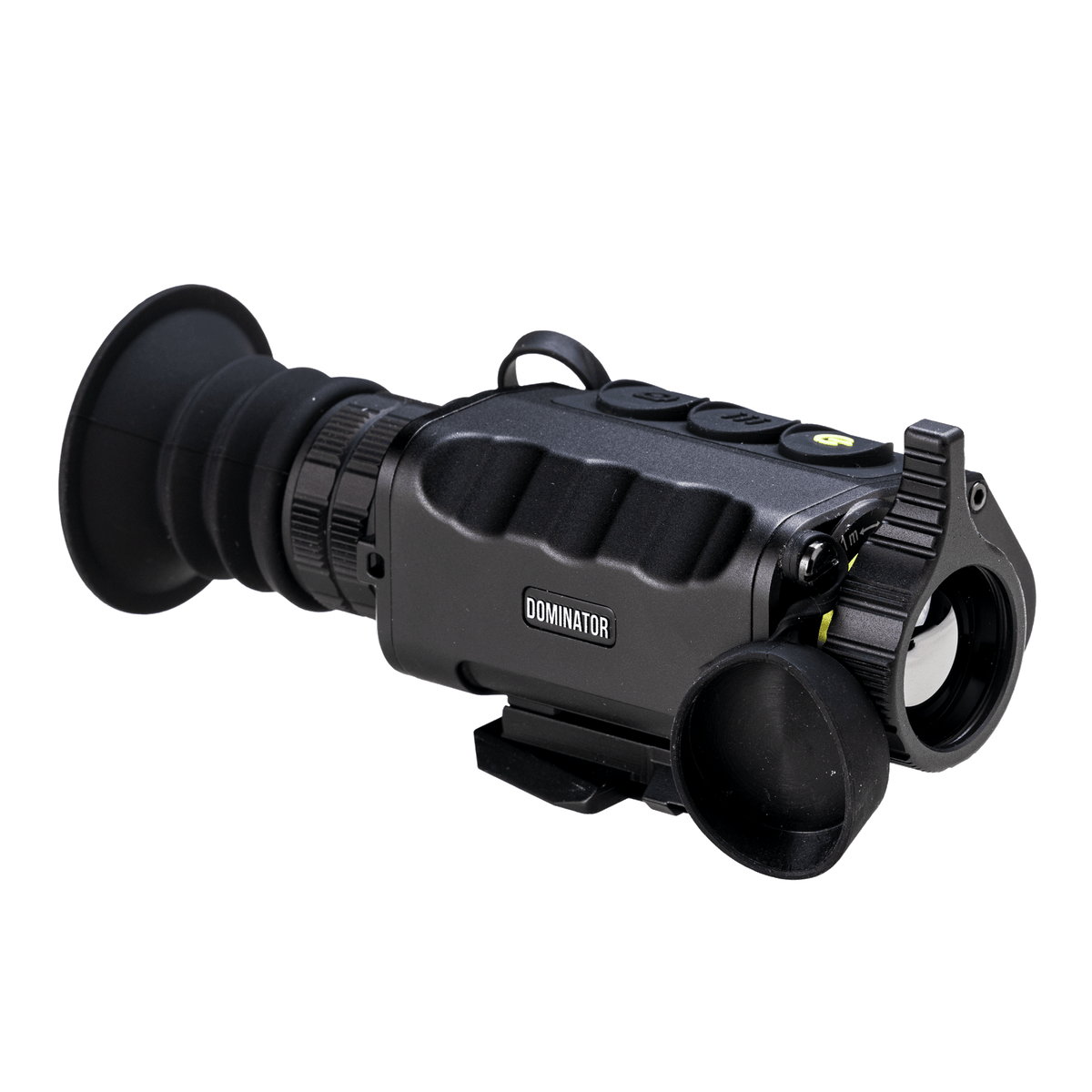

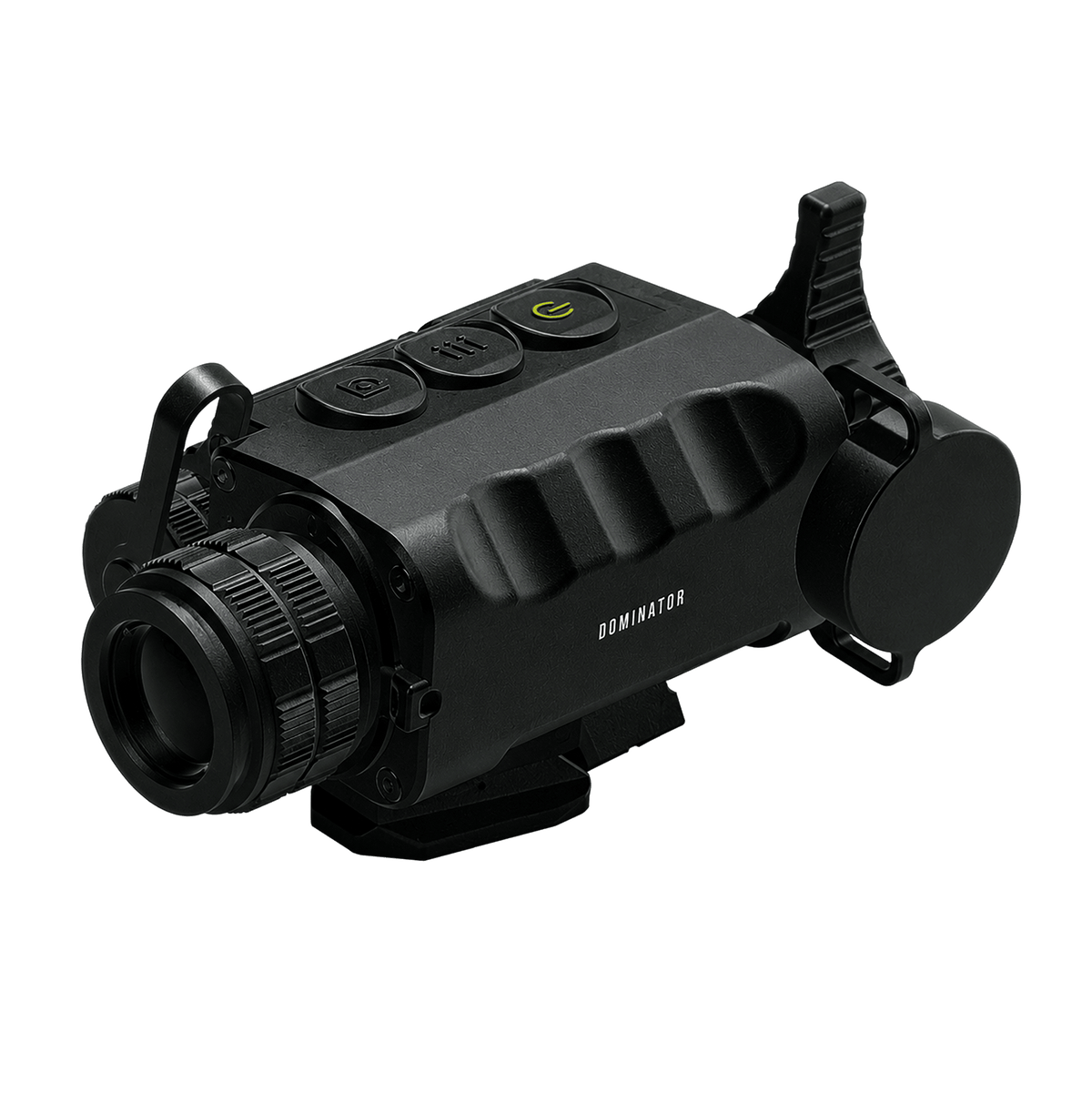

Dominator Multi-Purpose Thermal Monocular
DO625 · MULTI PURPOSE THERMAL SIGHT
SCROLL ▼

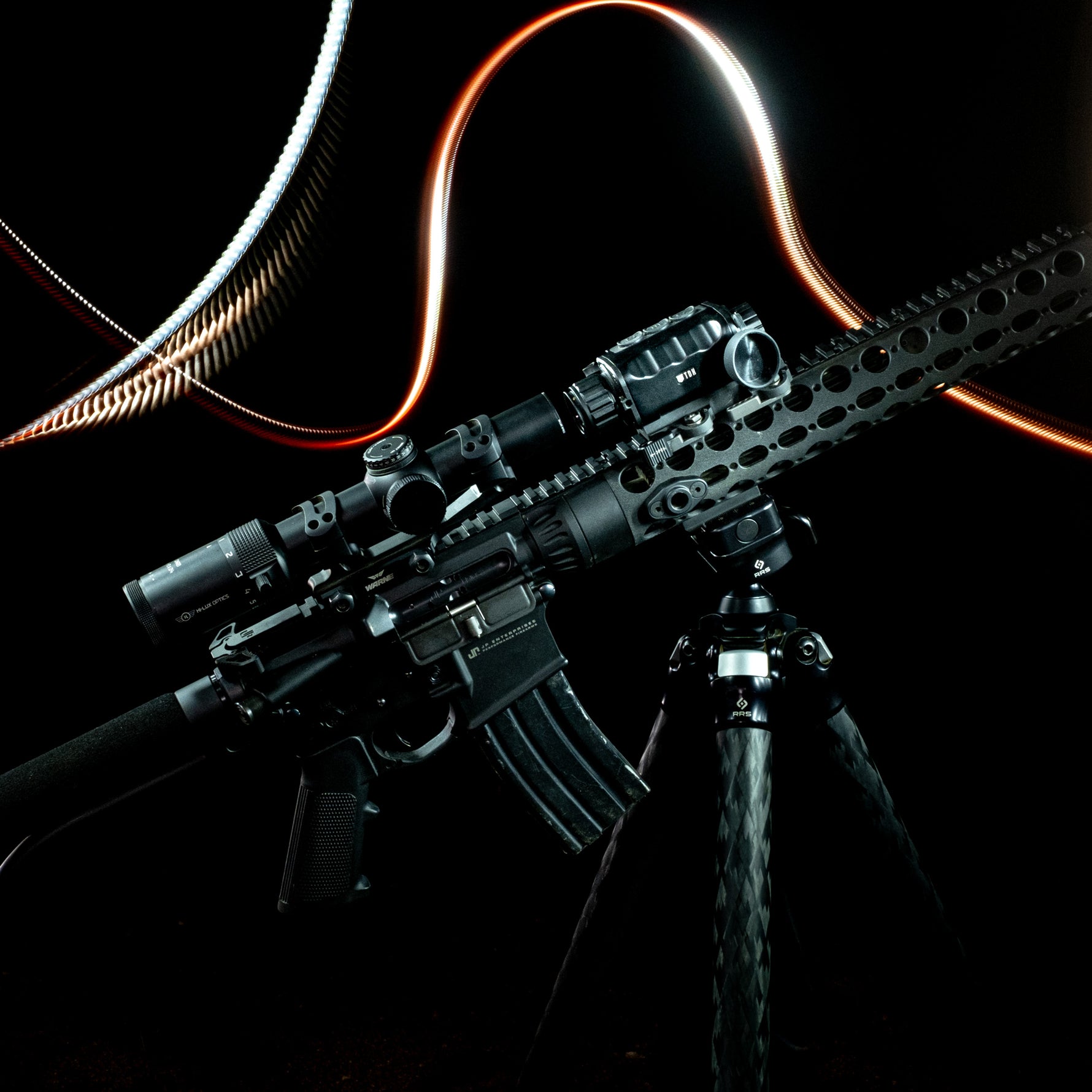

TDX Dominator Thermal Sight atop an AR platform at night

THE MULTI TOOL

One optic. Four Roles.

01 — CONFIGURATIONS

Four ways to run it.

Add thermal capability to the optic you already trust. The included flip-to-side mount positions the Dominator ahead of your day optic and lets you flip it out of the way when you don’t need it.

Dedicated Sight.

Run it as a dedicated thermal sight: 1.4× base magnification, a germanium F/1.0 lens and 35mm of eye relief. Multiple reticle options and onboard ballistics let you tailor the setup to your rifle.

▸BASE MAG 1.4×
▸EYE RELIEF 35 MM
▸ONBOARD BALLISTICS CALCULATOR
Configuration view
RIFLE SIGHT · DO625

02 — FIELD FOOTAGE

The view from here.

Real field footage from the Dominator. What you see here comes straight from the onboard recorder. Through the eyepiece, the image is even sharper.

● REC LIVE
MULTIPLE COLOR PALETTES
640×512 · 60 HZ · DO625

03 — SPECIFICATIONS

Technical Details.

Every number, straight from engineering. Values marked per-mode differ between rifle/handheld and clip-on/helmet configurations.

/ 01Sensor & Core
Detector type
Uncooled VOx
Resolution
640 × 512 px
NETD
≤20 mK (@25 °C)
Frame rate
60 Hz
/ 02Optics
Objective lens
25 mm / F1.0 · Germanium
Base magnification
1.38× (rifle, handheld) · 1× (clip-on, helmet)
Digital zoom
1× · 2× · 4×
Field of view
17.5° × 14°
Focus range
1 m – ∞
Eye relief
35 mm (rifle, handheld) · 15 mm (clip-on, helmet)
Exit pupil
≥6 mm
Diopter adjustment
−4 to +4 SD
/ 03Display & Electronics
Display
AMOLED · 1920 × 1080
Recording
MP4 / JPEG · audio · recoil-activated video
Storage
32 GB onboard
Battery
18650 · 3.7 V · ≥4 h @ 25 °C
External power
5 V / 2 A · USB Type-C (power, storage, firmware)
Connectivity
Wi-Fi · Bluetooth
/ 04Built for the Field
Recoil rating
1000 g/ms
Sealing
IP67 (IEC 60529)
Operating temp
−20 °C to +50 °C
Storage temp
−25 °C to +70 °C
Weight
310 g
Certifications
CE · FCC · 3C · RoHS 2.0
Mount options
Picatinny rail · helmet dovetail
In the box
Objective lens cover · rubber eye cup · data cable
/ 05Fire Control & Software
Palettes
White Hot · Black Hot · Iron · Fusion
Scene modes
City · Bird Watching · Desert · Forest · Arctic · Outline
Ballistics
Ballistic calculation · quick ballistics 10–1500 (25-unit steps)
Zeroing
One-shot zeroing · profiles A–E · 25/50/100/200/300 + user-entered
Reticles
14 patterns · black / white / red / green / blue · brightness 1–10
HOTSPOT TRACKINGSTADIAMETRIC RANGINGPICTURE-IN-PICTURENUC AUTO / MANUAL / BGCLIP-ON ALIGNMENTCOMPASSBURN-IN PROTECTIONDEAD-PIXEL CORRECTIONIMAGE ENHANCEMENT 1–10SLEEP MODEAUTO SHUTOFF 15/30/45EN / CN / FR / ES
