Why Your Thermal Scope Doesn’t Use Regular Glass

When you step into the world of night hunting, search and rescue, or thermal scanning, the first thing you notice is the price tag of a high-quality thermal optic. A major part of what you are paying for is the front lens.

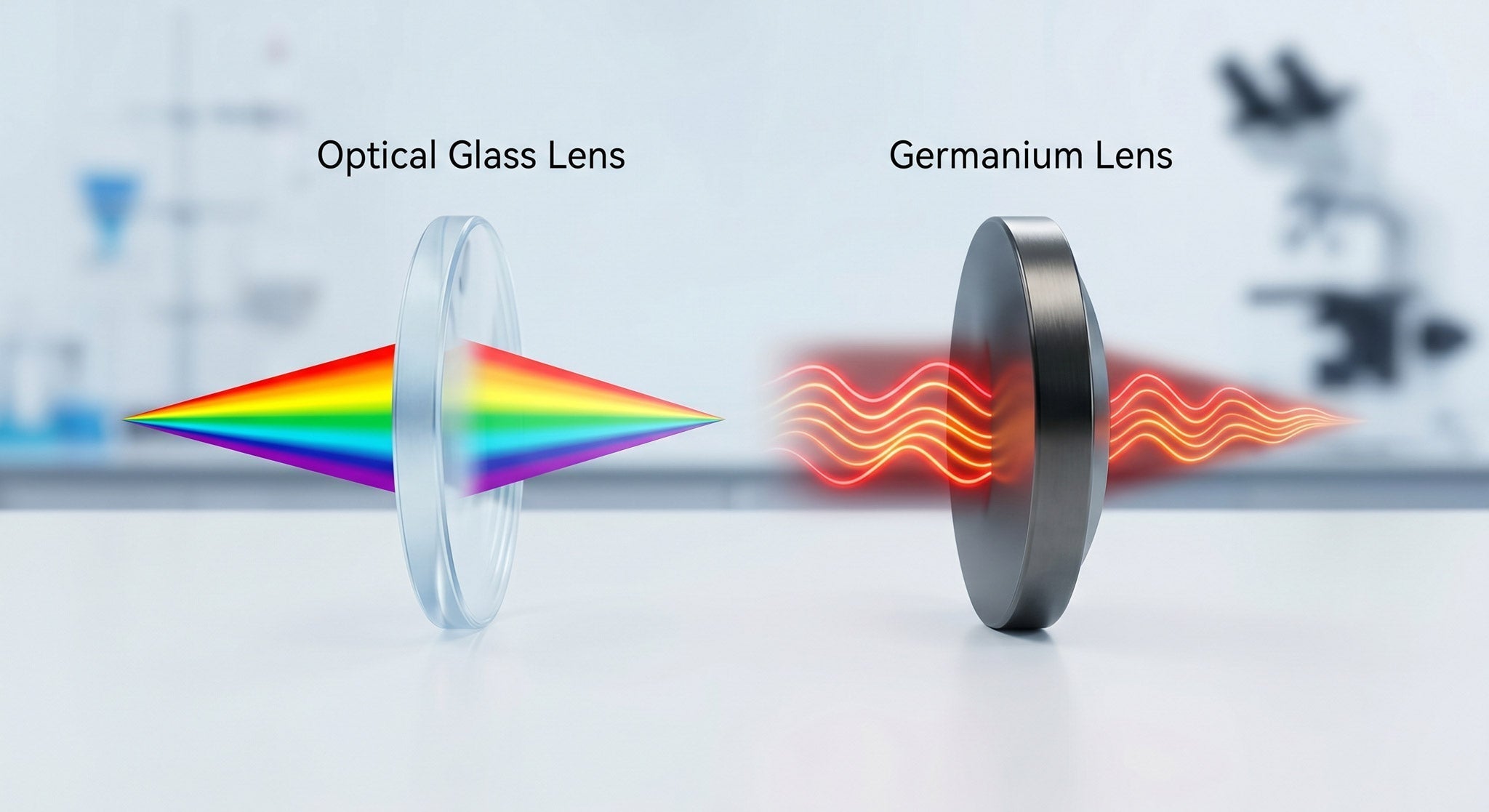

If you look through a window, visible light passes right through it. However, standard camera glass is completely opaque to the infrared spectrum. Specifically, it blocks the Long-Wave Infrared (LWIR) wavelength band of 8 to 14 micrometers, which is where thermal sensors detect heat signatures. Standard optical glass absorbs this heat radiation instead of letting it pass, making it look like a black wall to a thermal sensor.

To see heat, a thermal camera requires a specialized lens made of materials that allow infrared radiation to flow through unimpeded. This is where Germanium and Chalcogenide glass enter the picture.

Germanium: The Gold Standard of Thermal Lenses

Germanium is a strategic semi-metallic element that is actually rarer than gold. For decades, it has been the undisputed king of high-performance thermal optics, and it remains the industry's premium standard for several reasons:

• Incredible Transparency to Heat: Germanium allows infrared light in the 2 to 14 micrometer spectrum to pass through with almost zero absorption or signal loss, delivering a pristine, raw thermal signal to the sensor. This is a wider spectrum than standard LWIR, including the Mid-Wave IR spectrum.

• Extreme Light-Bending Power (Refractive Index): Germanium has an exceptionally high refractive index of approximately 4.0. This means it can bend infrared light much more sharply than regular glass. As a result, lens designers can use thinner, lighter, and fewer lens elements to achieve razor-sharp focus.

• Crystal Clarity (Low Dispersion): It doesn't scatter or split the incoming infrared wavelengths. This low dispersion translates directly to the high-contrast images you see in premium thermal scopes, allowing you to clearly identify targets at long range.

• Firearm-Grade Ruggedness: Germanium is a crystalline structure with excellent mechanical strength and hardness (registering 6.3 on the Mohs scale). When mounted to a centerfire hunting rifle, it easily withstands the violent, repeated shock of heavy recoil.

For anyone looking for a rugged, ultra-clear, professional-grade thermal scope that can handle harsh environments and the heavy recoil of a hunting rifle, a Germanium lens is the (better than) gold standard.

As an important note - Germanium lenses lose transmission capability as temperature rises. For the best performance, these lenses should be operated below 100C (212F). People also operate best below these temperatures, so your gear should be able to survive the same conditions you can.

Chalcogenide Glass: The Modern Alternative

Because Germanium is a rare strategic metal with extreme geopolitical supply-chain volatility, the optics industry developed a synthetic alternative: Chalcogenide glass. Chalcogenides are specialized chemical compounds made of metals and semi-metals combined with sulfur, selenium, or tellurium.

While not a crystalline structure like Germanium, this amorphous "glass" brings some unique advantages of its own:

• Cost and Sourcing: Chalcogenide glass is significantly cheaper to produce, often costing only one-third of the price of raw Germanium. This makes it popular for budget-friendly handheld thermal monoculars.

• Manufacturing Ease: While Germanium lenses must be carefully cut and polished with high-precision diamond-turning machines, Chalcogenide glass can be molded into complex lens shapes at high volumes, which lowers production costs.

• Thermal Defocus Resistance: One weakness of Germanium is that its refractive index changes significantly when the temperature shifts, potentially causing the scope to go out of focus. Chalcogenide has a very low thermo-optic coefficient (athermalization), meaning it maintains its focus beautifully whether you are in freezing winter woods or a boiling summer field.

Germanium vs. Chalcogenide: Why Germanium Still Rules the Field

If Chalcogenide is cheaper and resists temperature shifts, why is Germanium still highly emphasized as the superior choice?

1. Image Detail & Light Transmission: Germanium has a much higher refractive index (approximately 4.0) compared to Chalcogenide (which sits between 2.2 and 2.8). This lets Germanium focus infrared light much more efficiently onto the sensor, providing far richer target details, cleaner outlines, and superior contrast in low-visibility situations like fog, rain, or high humidity.

2. Recoil and Durability: Chalcogenide is a softer, more brittle material. While it is fine for handheld scanners, using it on a high-recoil rifle scope can be risky unless it is heavily protected. Germanium is naturally tough and holds up to the physical abuse of field hunting.

3. Lens Size & Complexity: Because of Chalcogenide’s lower refractive index, a scope needs thicker lenses, steeper curves, or more lens elements to achieve the same focus as a Germanium system. This can add bulk and weight to the front of the optic, changing the balance of the platform.

To protect both materials from field scratches and dirt, manufacturers typically apply an ultra-hard Diamond-Like Carbon (DLC) coating directly to the front element, adding a shield of extreme durability to ensure your investment lasts for years of field operations.
