THE LINE /01 — THERMAL RIFLE SCOPE

Praedator

PR335L · 384X288 / 1200M LRF

The dedicated thermal rifle scope, in a familiar 30 mm tube. A ≤20 mK VOx core behind fast germanium glass, 1–8× zoom on a 2560×2560 round AMOLED, and dual 18650s good for seven-plus hours. Built to sit on a rifle and own the night shift.

$2,399.00
NOT AVAILABLE YET — GET NOTIFIED
FULL SPECS
0×512
VOx sensor
1–0×
Zoom range
≥0 h
Dual 18650
0 g
Recoil / ms

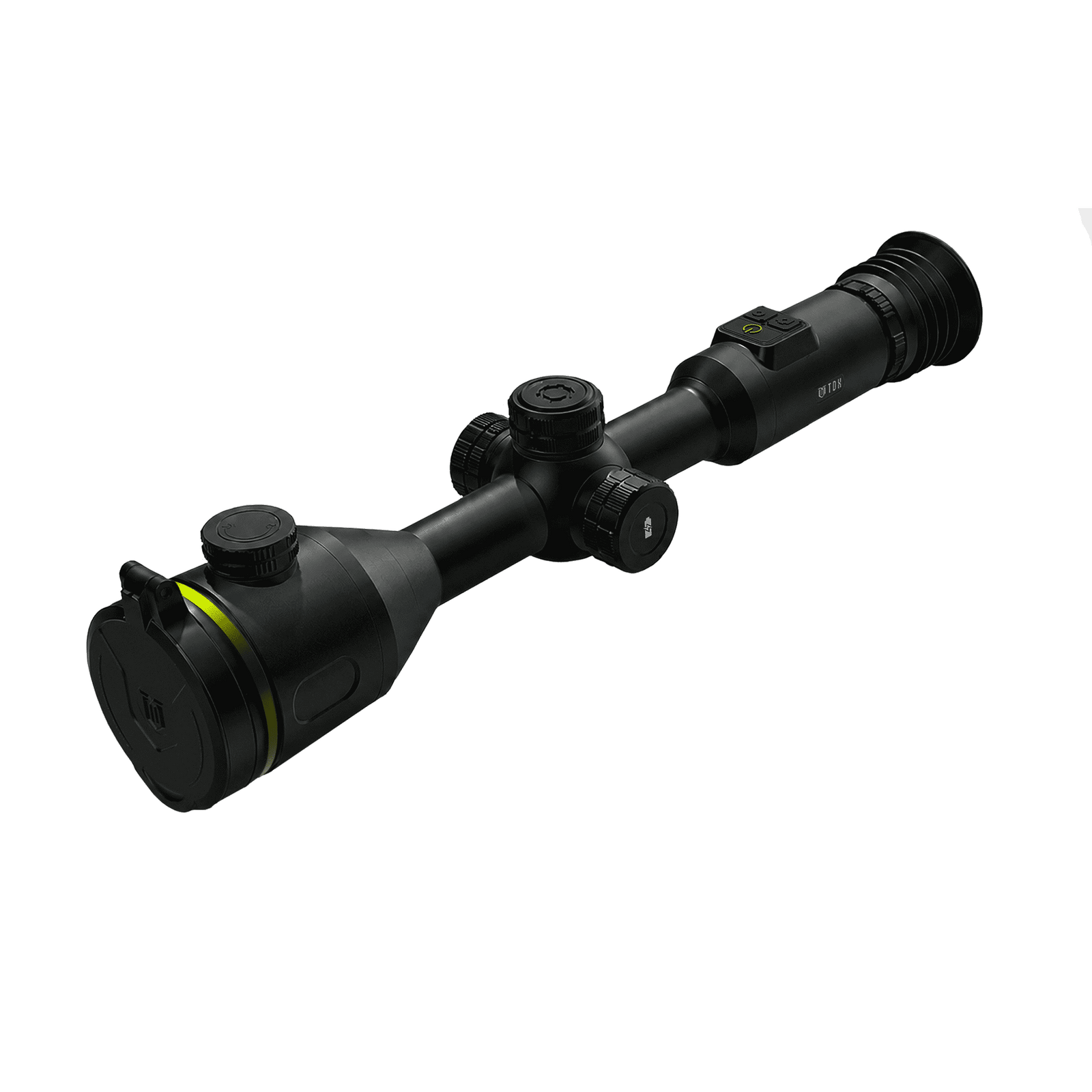

Praedator Thermal Rifle Scope
PR335L · THERMAL RIFLE SCOPE
SCROLL ▼

01 — CONFIGURE

Choose
your glass.

Two sensors, one familiar form factor. Take the 650's full 640×512 array behind a 50 mm objective for reach, or the 335 for a tighter, lighter package.

SENSOR / OBJECTIVE
RANGEFINDER

Add the LRF and the objective gets faster, F0.9 against the standard F1.0, with an onboard laser rangefinder reading single-shot or continuous at 1–2 Hz.

PR650L
FLAGSHIP · LRF

ALL MODELS: 60 HZ · 2560×2560 AMOLED · 1–8× ZOOM · IP67 · 1000 G/MS

02 — FIELD FOOTAGE

Shot on
Praedator.

Onboard recording with recoil activation, straight off the optic's 32 GB storage. Share the moment with friends over the TDX Command app.

● REC LIVE
UNEDITED
640×512 · 60 HZ · PR650L

03 — SPECIFICATIONS

The full sheet.

Every number, straight from engineering. Values marked 650/335 differ by model; L models add the laser rangefinder and F0.9 glass.

/ 01Sensor & Core
Detector type
Uncooled VOx
Resolution
640 × 512 px (650) · 384 × 288 px (335)
NETD
≤20 mK (@25 °C)
Frame rate
60 Hz
/ 02Optics
Objective lens
50 mm (650) · 35 mm (335) · F0.9 on L models, F1.0 standard · Germanium
Base magnification
3.3× (650) · 3.8× (335)
Digital zoom
1–8× · stepped or continuous
Field of view
8.7° × 7° (650) · 7.5° × 5.6° (335)
Focus range
5 m – ∞
Eye relief
50 mm
Exit pupil distance
46 mm
Diopter adjustment
−5 to +5 SD
/ 03Display & Electronics
Display
Round AMOLED · 2560 × 2560
Recording
MP4 / JPEG · audio · recoil-activated video
Storage
32 GB onboard
Battery
Dual 18650 · internal + removable external · 3.7 V · ≥7 h @ 25 °C
External power
5 V / 2 A · USB Type-C (power, storage, firmware)
Connectivity
Wi-Fi · Bluetooth
/ 04Built for the Field
Recoil rating
1000 g/ms
Sealing
IP67 (IEC 60529)
Operating temp
−30 °C to +45 °C
Storage temp
−25 °C to +70 °C
Weight
≤1000 g (including battery)
Certifications
CE · FCC · 3C · RoHS 2.0
Mount
Picatinny
In the box
Objective lens cover · rubber eye cup · data cable
/ 05Fire Control & Software
Palettes
White Hot · Black Hot · Iron · Fusion
Scene modes
City · Bird Watching · Desert · Forest · Arctic · Outline
Ballistics
Ballistic calculation · quick ballistics 10–1500 (10-yard increments)
Zeroing
One-shot zeroing · profiles A–E · 25/50/100/200/300 + user-entered
Reticles
16 patterns · black / white / red / green / blue · brightness 1–10
Laser ranging (L)
Single / 1 Hz / 2 Hz · 3 ranging reticles · meters / yards · field calibration
HOTSPOT TRACKINGSTADIAMETRIC RANGINGPICTURE-IN-PICTURENUC AUTO / MANUAL / BGZOOM STEPPED / CONTINUOUSCOMPASSBURN-IN PROTECTIONDEAD-PIXEL CORRECTIONIMAGE ENHANCEMENT 1–10AUDIO RECORDINGAUTO SHUTOFF 15/30/45EN / CN / FR / ES

ENLIST

First in
line.

Praedator pre-orders open Q4 2026. Legion members get first allocation, launch pricing, and the footage drops before anyone else.

TDX Praedator Thermal Scope atop an AR platform, doused in falling water

ANY CONDITION

Sealed and Rated

IP67 is an immersion rating, not a splash rating: dust-tight and good for a meter of water. The housing is 6061-T6, machined and rated to 1000 g/ms of recoil.
