THE LINE /MULTI-PURPOSE SIGHT

Dominator

DO625 ·

One core, four configurations. The Dominator runs a 640×512, ≤20 mK VOx sensor behind germanium glass and mounts wherever the job demands: rifle, clip-on, helmet, or handheld. Recoil-rated to 1000 g, sealed to IP67, and recording the moment your trigger breaks.

$4,499.00
NOT AVAILABLE YET — GET NOTIFIED
0×512
Resolution, Px
0 mK
NETD
0 Hz
AMOLED feed
0 g
Without mounts

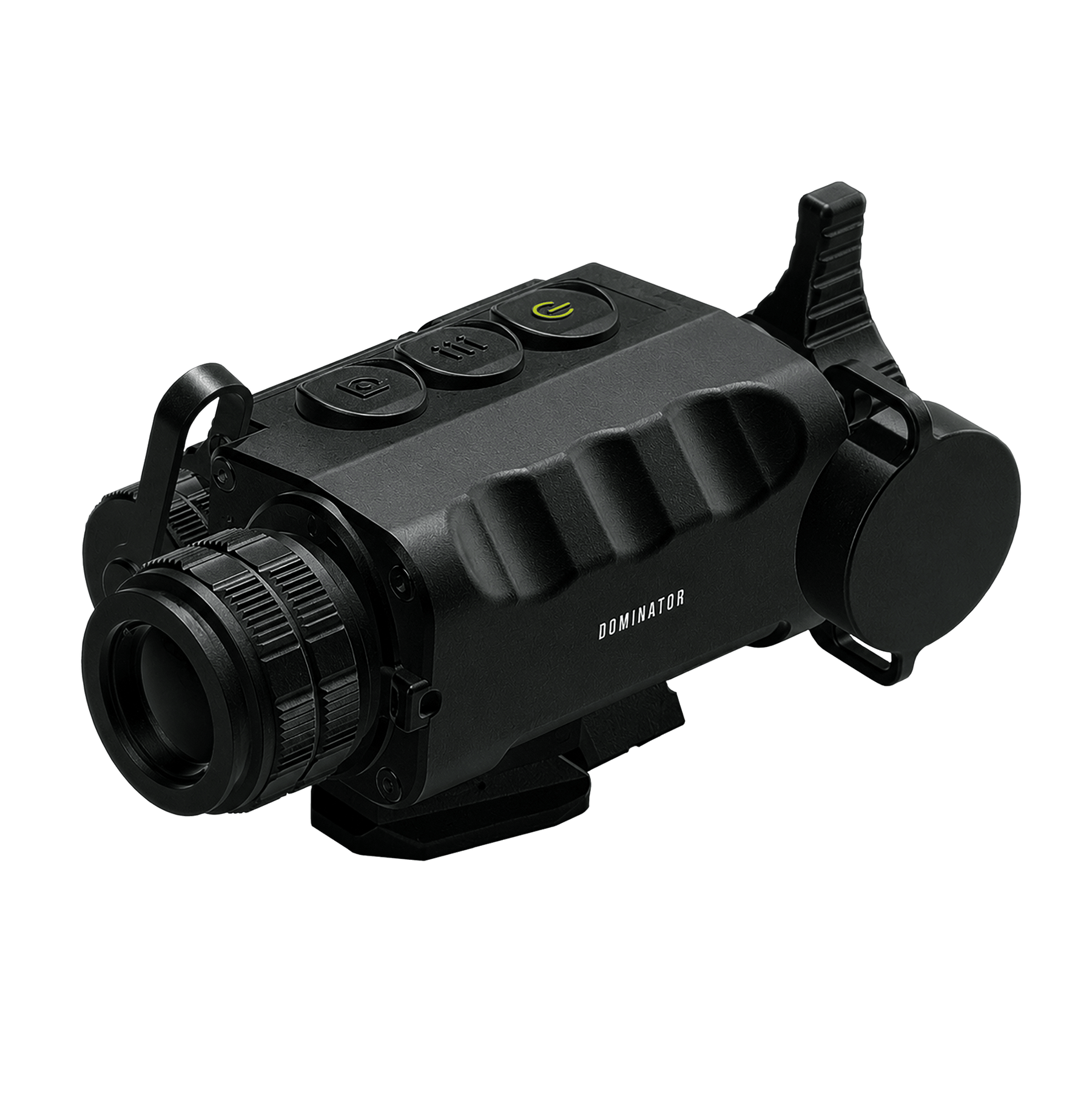

Dominator Multi-Purpose Thermal Monocular
DO625 · MULTI PURPOSE THERMAL SIGHT
SCROLL ▼

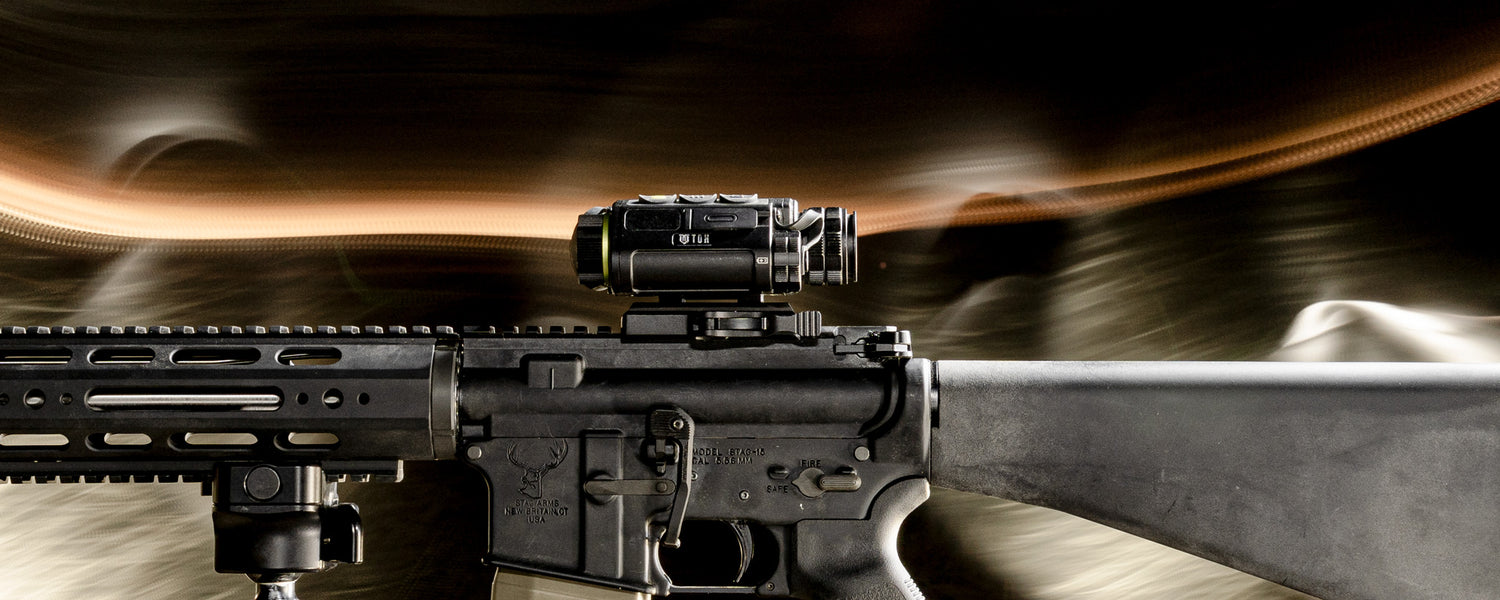

TDX Dominator Thermal Sight atop an AR platform at night

THE MULTI TOOL

One optic. Four jobs.

Rifle sight tonight, clip-on in front of your day optic next weekend, helmet-mounted when you need both hands, handheld when you're just looking.

Button label

01 — CONFIGURATIONS

One core.
Four mounts.

Every mode runs the same 640×512 core. Swap the mount, not the optic, and set up for the night's work.

Direct-mount primary.

Run it as the primary optic: 1.38× base magnification through Germanium glass, 35 mm of eye relief, and a recoil rating that shrugs off the hardest-hitting calibers.

BASE MAG 1.38×
EYE RELIEF 35 MM
PICATINNY RAIL MOUNT

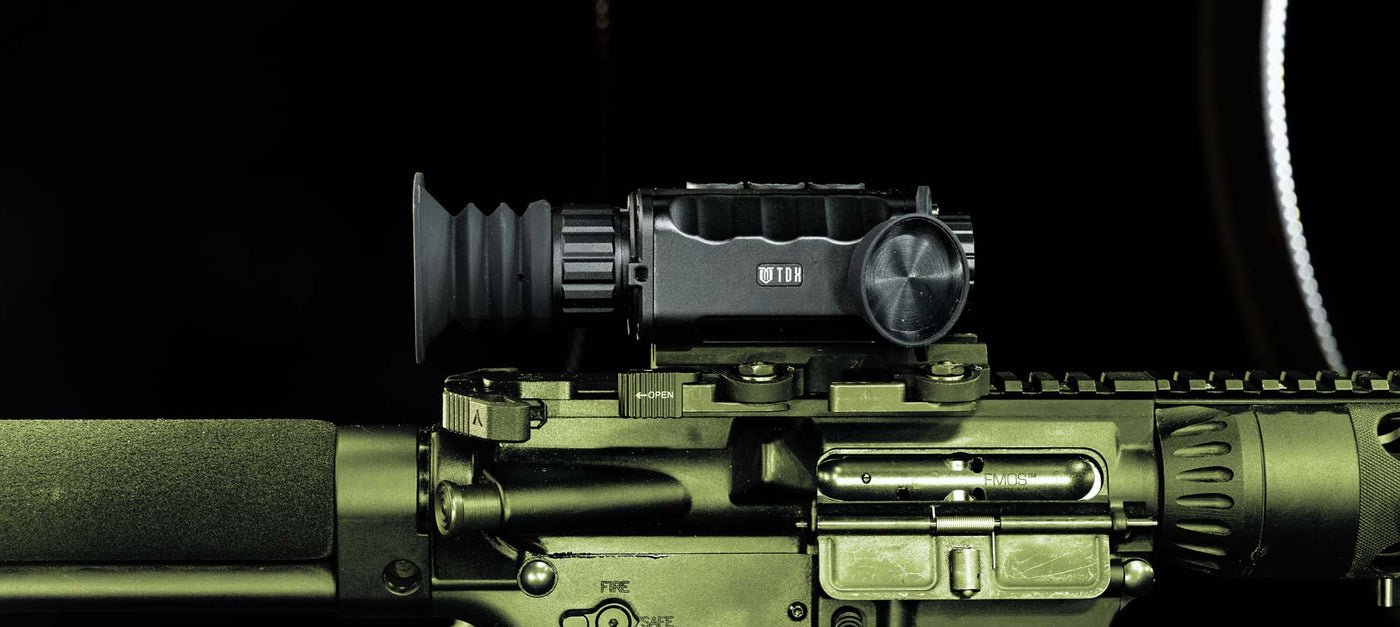

Configuration view
RIFLE SIGHT · DO625

02 — FIELD FOOTAGE

Shot on
Dominator.

Pulled directly from the Dominator's 32 GB onboard storage. No editing, no reshoots — and it's even sharper on the device. Recoil-activated video means the moment of truth records itself.

● REC LIVE
MULTIPLE COLOR PALETTES
640×512 · 60 HZ · DO625

03 — SPECIFICATIONS

The full sheet.

Every number, straight from engineering. Values marked per-mode differ between rifle/handheld and clip-on/helmet configurations.

/ 01Sensor & Core
Detector type
Uncooled VOx
Resolution
640 × 512 px
NETD
≤20 mK (@25 °C)
Frame rate
60 Hz
/ 02Optics
Objective lens
25 mm / F1.0 · Germanium
Base magnification
1.38× (rifle, handheld) · 1× (clip-on, helmet)
Digital zoom
1× · 2× · 4×
Field of view
17.5° × 14°
Focus range
1 m – ∞
Eye relief
35 mm (rifle, handheld) · 15 mm (clip-on, helmet)
Exit pupil
≥6 mm
Diopter adjustment
−4 to +4 SD
/ 03Display & Electronics
Display
AMOLED · 1920 × 1080
Recording
MP4 / JPEG · audio · recoil-activated video
Storage
32 GB onboard
Battery
18650 · 3.7 V · ≥4 h @ 25 °C
External power
5 V / 2 A · USB Type-C (power, storage, firmware)
Connectivity
Wi-Fi · Bluetooth
/ 04Built for the Field
Recoil rating
1000 g/ms
Sealing
IP67 (IEC 60529)
Operating temp
−30 °C to +45 °C
Storage temp
−25 °C to +70 °C
Weight
340g
Certifications
CE · FCC · 3C · RoHS 2.0
Mount options
Picatinny rail · helmet dovetail
In the box
Objective lens cover · rubber eye cup · data cable
/ 05Fire Control & Software
Palettes
White Hot · Black Hot · Iron · Fusion
Scene modes
City · Bird Watching · Desert · Forest · Arctic · Outline
Ballistics
Ballistic calculation · quick ballistics 10–1500 (25-unit steps)
Zeroing
One-shot zeroing · profiles A–E · 25/50/100/200/300 + user-entered
Reticles
14 patterns · black / white / red / green / blue · brightness 1–10
HOTSPOT TRACKINGSTADIAMETRIC RANGINGPICTURE-IN-PICTURENUC AUTO / MANUAL / BGCLIP-ON ALIGNMENTCOMPASSBURN-IN PROTECTIONDEAD-PIXEL CORRECTIONIMAGE ENHANCEMENT 1–10SLEEP MODEAUTO SHUTOFF 15/30/45EN / CN / FR / ES

ENLIST

First in
line.

Dominator pre-orders open Q4 2026. Legion members get first allocation, launch pricing, and the footage drops before anyone else.
