THE LINE /04 — HANDHELD MONOCULAR

Perceptor

PE335L · 384X288 / 35MM F1.0

A precision observation hub in the palm of your hand. Pull a heat signature out of a treeline, range it to 1,200 meters, and know what you're looking at in total darkness. IP67-sealed, tripod-ready, recording everything to 32 GB onboard.

$1,950.00
FULL SPECS
0×512
Max Resolution, Px
≤0 mK
NETD
0 m
Laser rangefinder
≤0 g
In hand
Perceptor Handheld Thermal Monocular with Integrated Laser Rangefinder and Ballistics
PE335L · THERMAL HANDHELD MONOCULAR
SCROLL ▼

01 — CONFIGURE

Pick your
Application.

Three configurations, every one carrying the integrated 1,200m laser range finder. The difference is base magnification glass and sensor resolution.

MODEL

The 635's 12.5° field of view sweeps the most ground. The 650's 50 mm objective offers the farthest detection range. The 335's 384 core packs the highest base magnification into the smallest, lightest body.

PE650L
REACH

ALL MODELS: 1200 M LRF · 60 HZ · 1920×1080 AMOLED · IP67 · 1/4″ TRIPOD THREAD

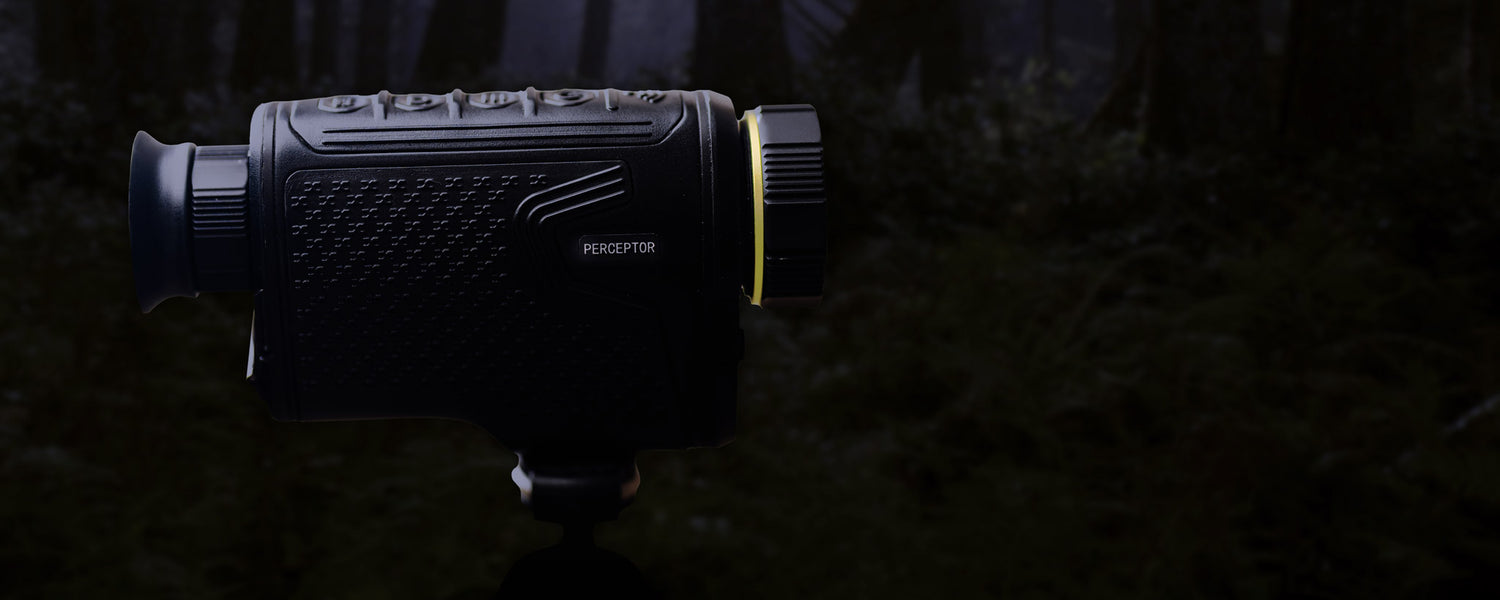

Perceptor handheld thermal sight in the forest at night

RANGING

Distance, not a guess.

A 1,200 m laser rangefinder is standard on every Perceptor. Single-shot or continuous at 1 to 2 Hz, meters or yards. Know how far before you make the call.

Button label

02 — FIND. RANGE. CONFIRM.

/ 01
Hotspot Tracking

The optic calls out the hottest signature in the frame in real time and holds a box on it. Glass a hillside and let it do the finding.

/ 02
1,200m LRF

Integrated rangefinder with single-shot and continuous 1–2 Hz modes, three ranging reticles, meters or yards. Fed straight to the onboard ballistic solver.

/ 03
Record & Share

MP4 with audio to 32 GB onboard, live streaming to the TDX Command app over Wi-Fi, offload via USB-C. A 1/4-inch thread turns any tripod into a fixed observation post.

03 — SPECIFICATIONS

The full sheet.

Every number, straight from engineering. Where models differ, values are marked 335L / 635L / 650L.

/ 01Sensor & Core
Detector type
Uncooled VOx
Resolution
384 × 288 px (335L) · 640 × 512 px (635L, 650L)
NETD
≤20 mK (@25 °C)
Frame rate
60 Hz
/ 02Optics
Objective lens
35 mm F1.0 (335L, 635L) · 50 mm F1.2 (650L) · Germanium
Base magnification
3.6× (335L) · 2.0× (635L) · 2.8× (650L)
Digital zoom
1× · 2× · 4×
Field of view
7.5° × 5.6° (335L) · 12.5° × 10° (635L) · 8.7° × 7° (650L)
Focus range
3 m – ∞
Eye relief
18 mm
Exit pupil diameter
Ø 9.7 mm (335L) · Ø 17.5 mm (635L) · Ø 17.8 mm (650L)
Diopter adjustment
−4 to +4 SD
/ 03Display & Electronics
Display
AMOLED · 1920 × 1080
Recording
MP4 / JPEG · audio recording
Storage
32 GB onboard
Battery
18650 × 1 · 3.7 V · ≥ 5h @ 25 °C
External power
5 V / 2 A · USB Type-C (power, storage, firmware)
Connectivity
Wi-Fi · Bluetooth
/ 04Built for the Field
Laser rangefinder
1,200 m · standard on all models
Recoil rating
1000 g/ms
Sealing
IP67 (IEC 60529)
Operating temp
−30 °C to +45 °C
Storage temp
−25 °C to +70 °C
Weight
370 g (335L) · 372 g (635L) · 390 g (650L)
Mechanical interface
1/4″ tripod thread
Certifications
CE · FCC · 3C · RoHS 2.0
In the box
Objective lens cover · rubber eye cup · data cable
/ 05Software
Palettes
White Hot · Black Hot · Iron · Fusion
Scene modes
City · Bird Watching · Desert · Forest · Arctic · Outline
Ranging
Single / 1 Hz / 2 Hz · 3 ranging reticles · meters / yards · field calibration
Ballistics
Onboard Ballistic Solver
HOTSPOT TRACKINGPICTURE-IN-PICTURENUC AUTO / MANUAL / BGCOMPASSBURN-IN PROTECTIONDEAD-PIXEL CORRECTIONIMAGE ENHANCEMENT 1–10AUDIO RECORDINGSLEEP MODEAUTO SHUTOFF 15/30/45EN / CN / FR / ES

ENLIST

First in
line.

Perceptor pre-orders open Q4 2026. Legion members get first allocation, launch pricing, and the footage drops before anyone else.
